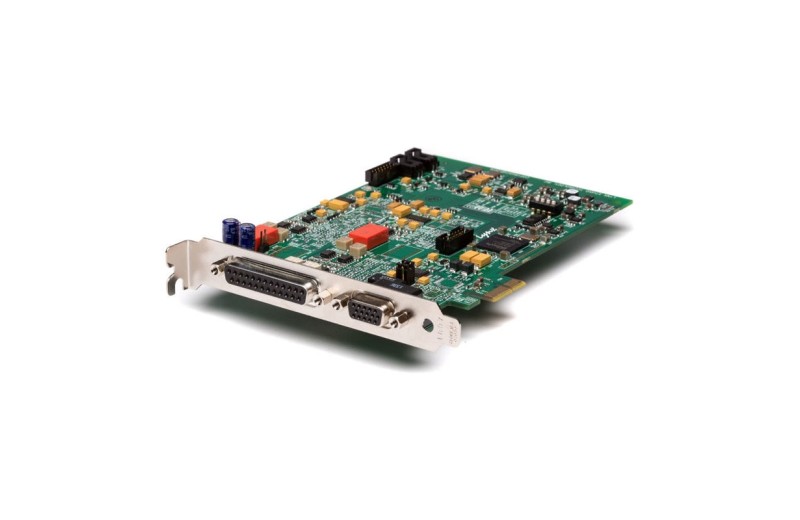

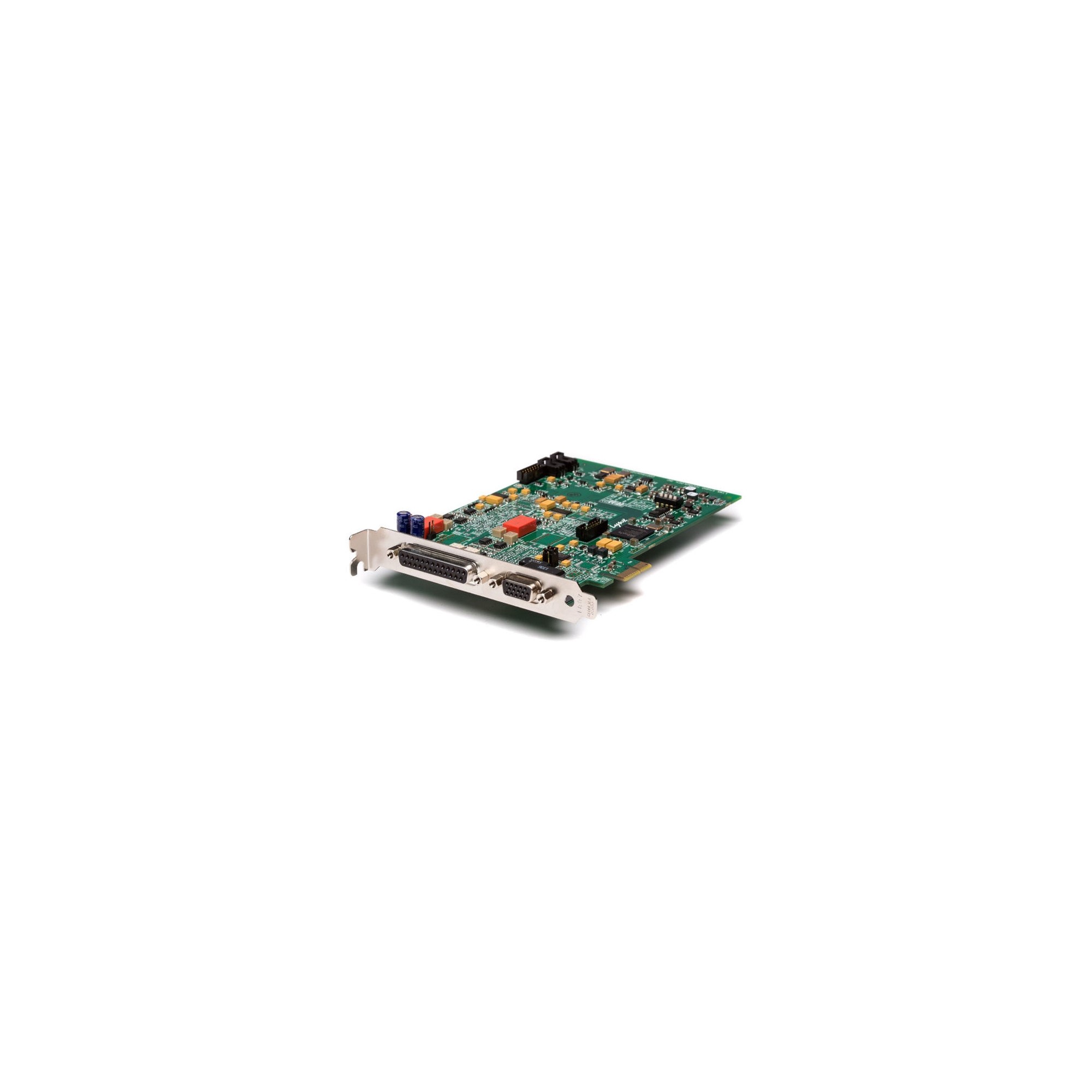

Lynx E22

The E22 is a high-end PCI Express audio card featuring two analogue and two digital inputs and outputs. It incorporates premium A/D and D/A converters and carefully selected components, ensuring exceptional sound quality and dependable performance during continuous operation.

It is ideal for classical music recording, acoustic measurements, radio broadcasting, and demanding professional recording studios.

TECHNICAL SPECIFICATIONS
Sample rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
2 analogue inputs and 2 analogue outputs
2 digital inputs and 2 digital outputs via AES3 and S/PDIF
SynchroLock™ sample clock generator for precise synchronisation
FPGA-based hardware mixing
Frequency response: 20 Hz–20 kHz, ±0.05 dB
Dynamic range: 117 dB, A-weighted
Channel crosstalk: below ?128 dB
V2 DMA Engine for exceptionally low-latency performance
Adjustable trim levels for the analogue inputs
Automatic output muting during power-up and shutdown
Compatible with PC and Mac
Supports Mac OS X and Windows 7, 8 and 10
Thunderbolt support through a suitable adapter or expansion chassis
Includes the Lynx Mixer software application
Designed and manufactured in the USA
IDEAL FOR
Classical music recording and digitisation
Professional studios with demanding sound-quality requirements
Radio and television broadcasting facilities
Post-production installations
Acoustic measurements and scientific applications

The E22 incorporates high-performance A/D and D/A converters, delivering exceptional results in both music recording and demanding applications that require high levels of accuracy and reliability at resolutions of up to 24-bit/192 kHz.

PLEASE NOTE

Cables are not included with the card. Please refer to the related products section to select the appropriate connection cables.
