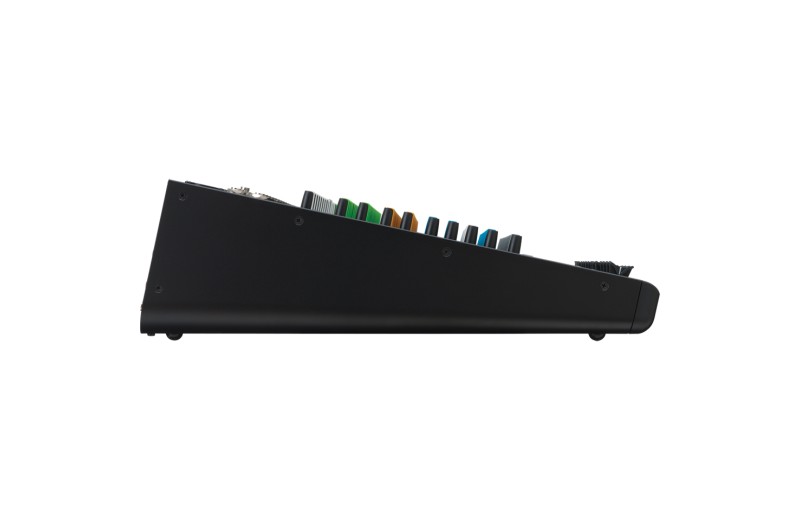

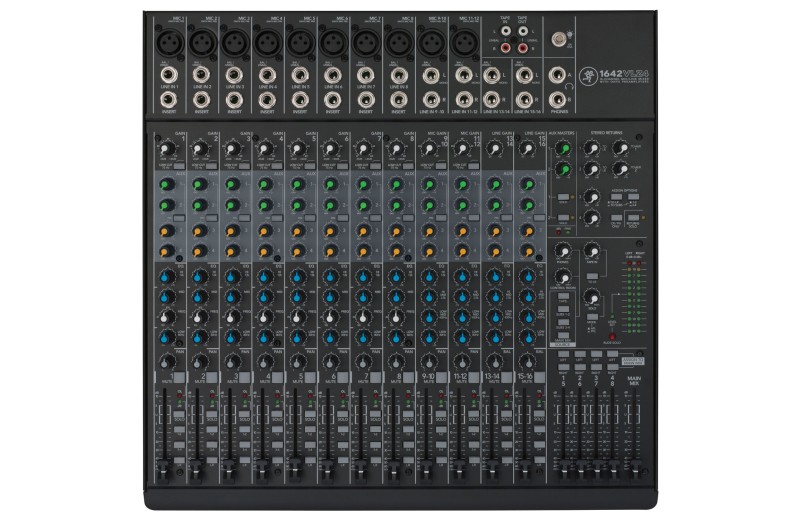

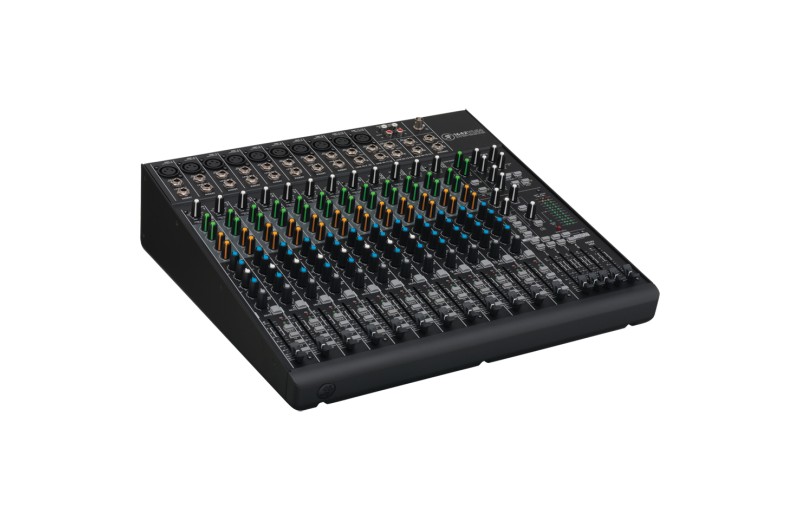

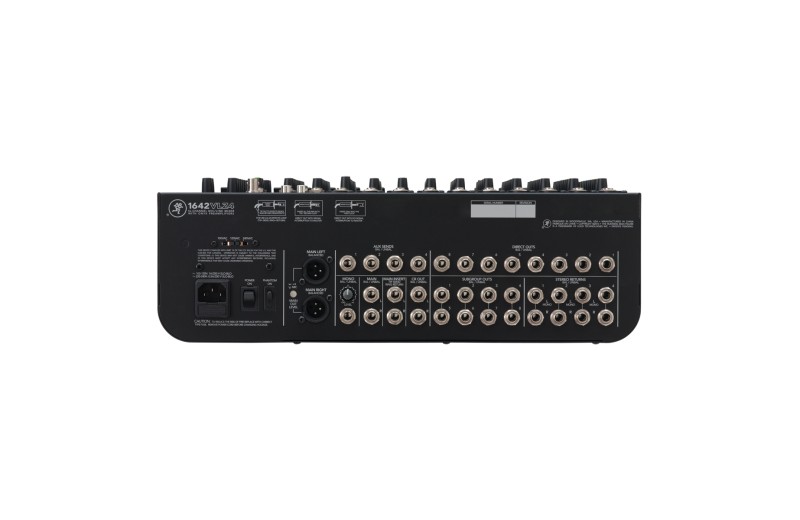

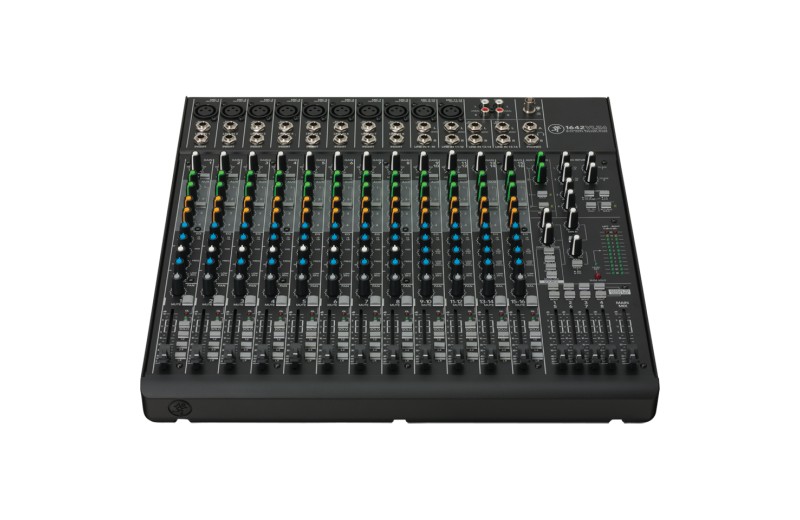

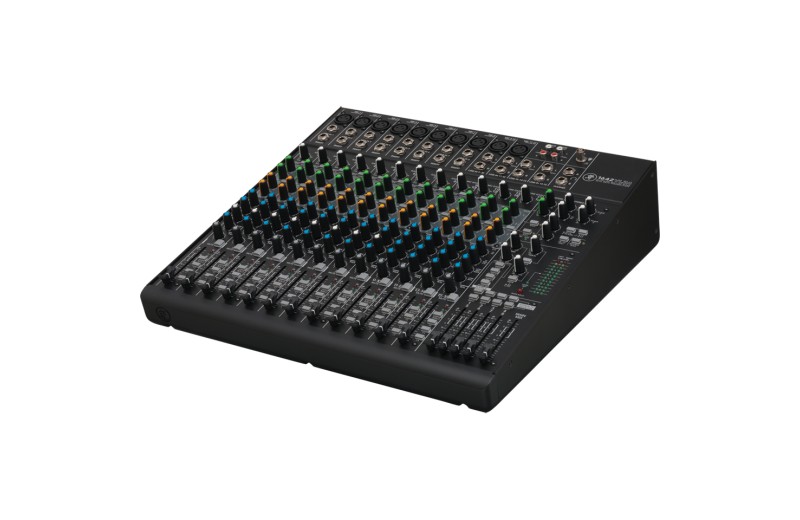

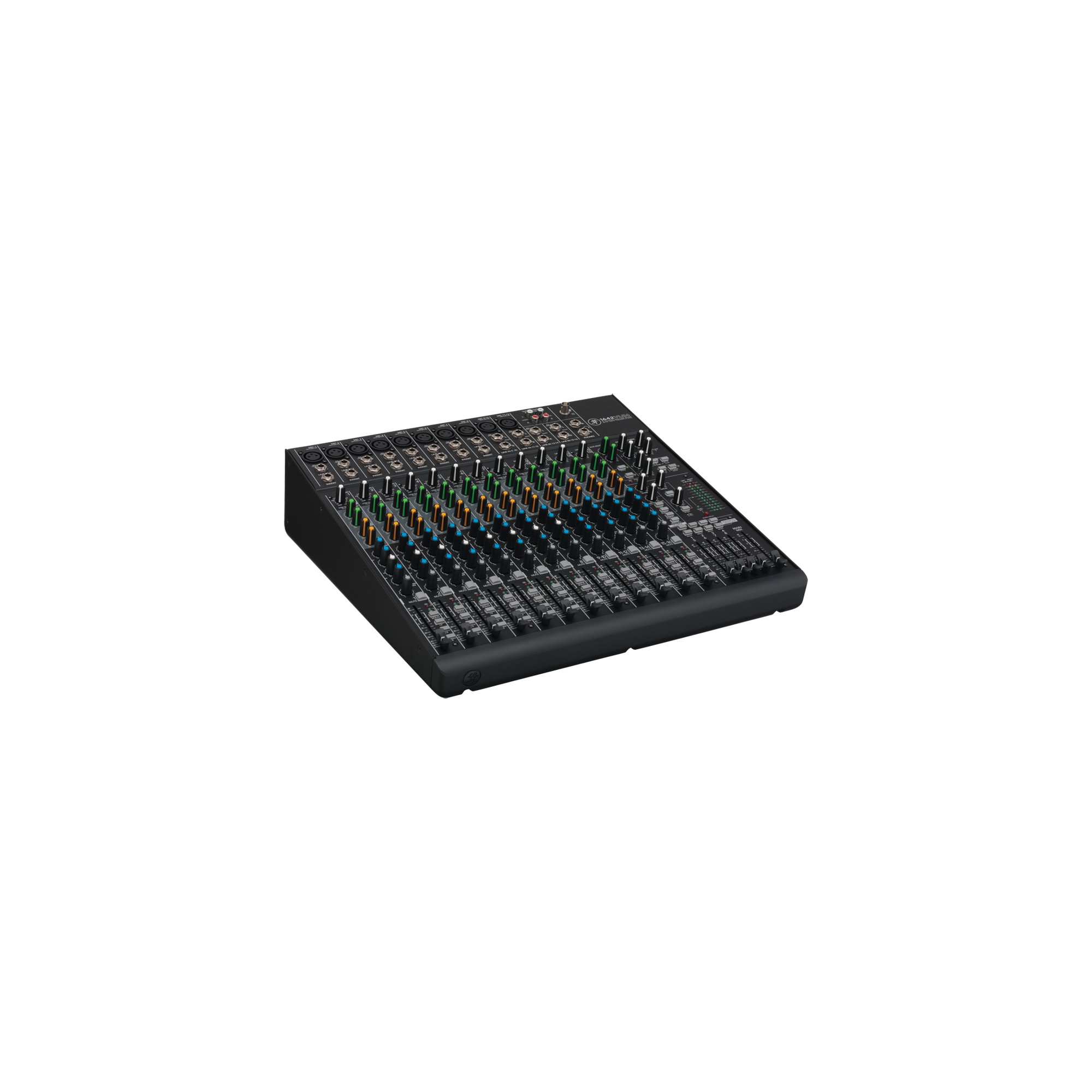

Mackie 1642VLZ4 16-Channel Compact Analog Mixer

Mackie 1642VLZ4, a professional compact 16-channel analog mixer equipped with 10 Onyx microphone preamps and 16 high-headroom line inputs, designed for studio, live sound and installation applications where flexible routing and reliable analog mixing are required. The VLZ4 Series combines low noise, high headroom and rugged construction, with a focus on clean and efficient management of multiple audio signals.

The 10 Onyx mic preamps provide 60dB of gain range, 128.5dB of dynamic range and the ability to handle line levels up to +22dBu, while phantom power is available for condenser microphones. Each channel features 3-band EQ at 80Hz, 2.5kHz and 12kHz, along with a 75Hz low-cut filter with an 18dB/octave slope on the microphone channels.

The mixer includes 4 aux sends, 4 stereo returns, an ALT 3/4 stereo bus and a control room / phones source matrix, offering extensive flexibility for signal routing, external effects integration and the creation of separate monitor or recording mixes. The 60mm log-taper faders and high-resolution 12-segment stereo meters provide direct and accurate level control.

The chassis is constructed from steel with a powder-coated finish, while the sealed rotary controls offer increased protection against dust and contaminants. The 1642VLZ4 can also be rack-mounted using the optional rackmount kit, while the multi-voltage power supply allows operation with different mains standards.

Technical Specifications

Type: 16-channel analog mixer
Mic inputs: 10
Line inputs: 16
Mic preamps: 10 x Onyx
Gain range: 60dB
Dynamic range: 128.5dB
Maximum line input level: +22dBu
THD: <0.0007% (20Hz–50kHz)
Phantom power: Yes
EQ per channel: 3-band, 80Hz / 2.5kHz / 12kHz
Low-cut filter: 75Hz, 18dB/octave
Aux sends: 4
Stereo returns: 4
ALT bus: ALT 3/4 stereo bus
Control room / Phones matrix: Yes
Faders: 60mm log-taper
Meters: 12-segment stereo LED meters
Construction: Steel chassis with powder-coated finish
Rotary controls: Sealed, resistant to dust and contaminants
Rack mounting: Yes, with optional rackmount kit
Power supply: Multi-voltage power supply
