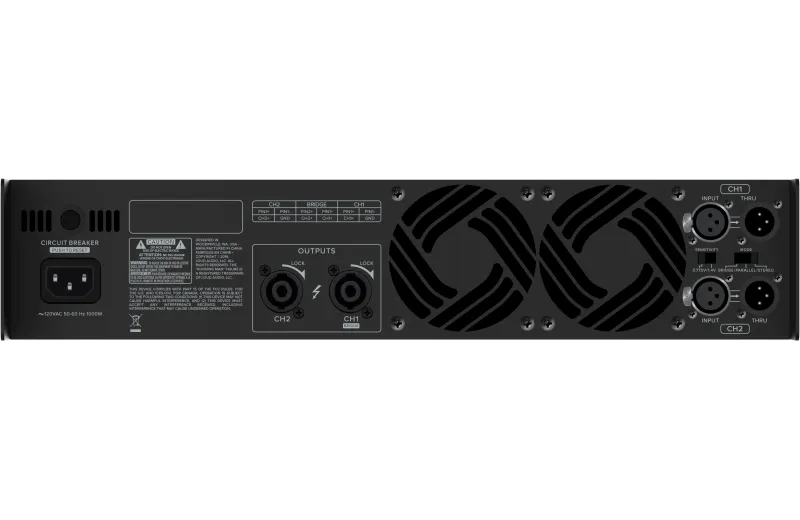

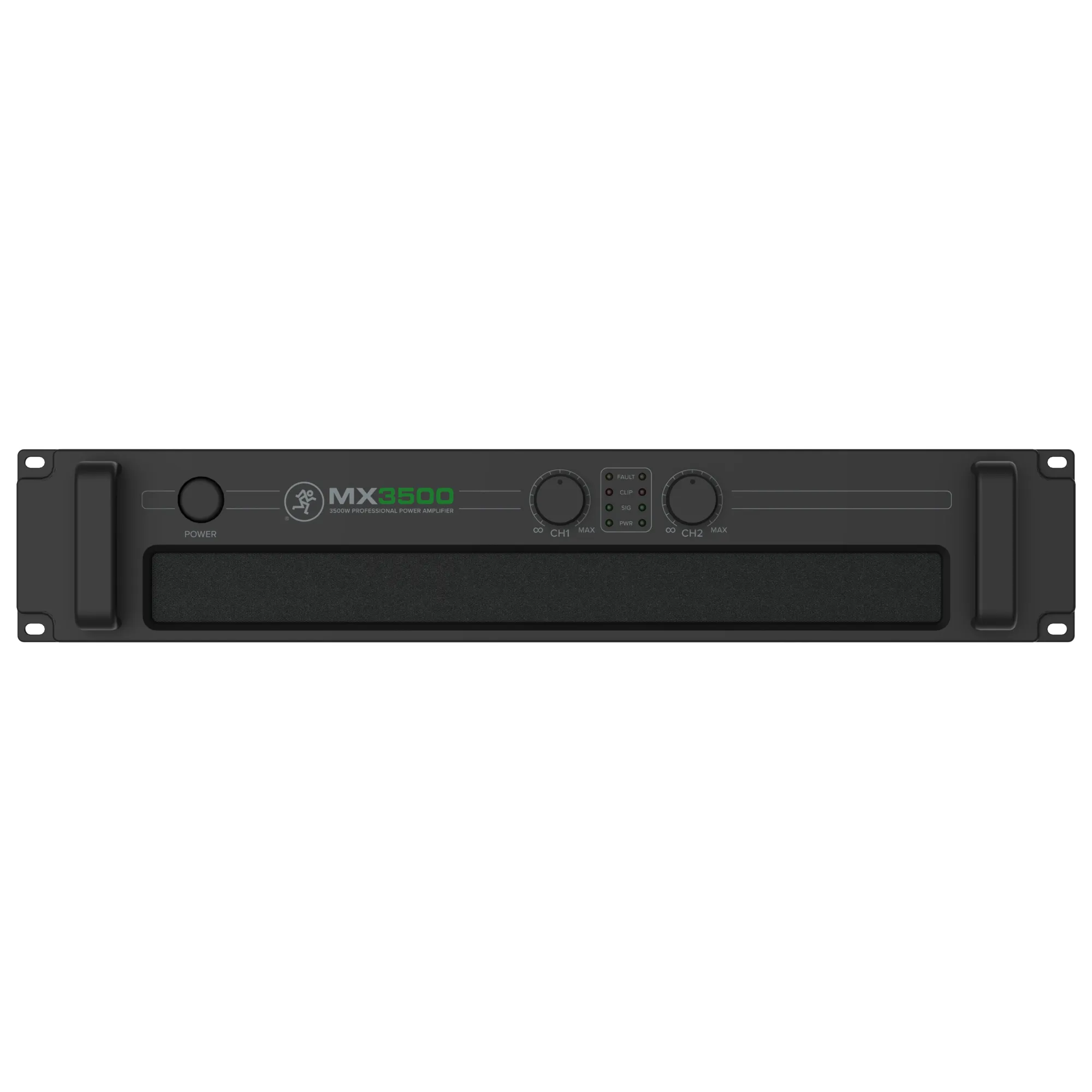

Mackie MX3500 professional power two channel amplifier up to a total of 2 x 1000W at 8Ω, 2 x 1350W at 4Ω and 2700W at 8Ω in bridged mode. It has a super-quiet operation and provides the power and performance needed for installation and portable passive systems. MX 3500 amplifier features a selectable parallel/stereo/bridged operating modes, independent level control per channel, selectable input sensitivity, signal, clip and fault LEDs per channel. XLR and Thru inputs per channel are also present along with SpeakON NL4 outputs. Rack Mount 2U. Dimensions (WxDxH) 483 x 370 x 88mm - 18,3kg
Specifications
Stable at 2 Ohms
No
Category
Power Amplifier
Power 4Ohms / channel
1350 W
Power 8Ohms / channel
1000W
DSP
No
Signal to Noise Ratio
105 dB
Frequency Response
202Hz - 20kHz
Amplifier Type
Professional
Power Bridge 8Ohms
2700 W
Channels
2
Inputs
Xlr
Amp Class
Class B
Sensitivity Inputs
0,775 V / 1,4 V
Outputs
Speakon
Xlr Thru
Protective Cirquits
Peak and Rms Limiting / Power Supply / Thermal Protection
