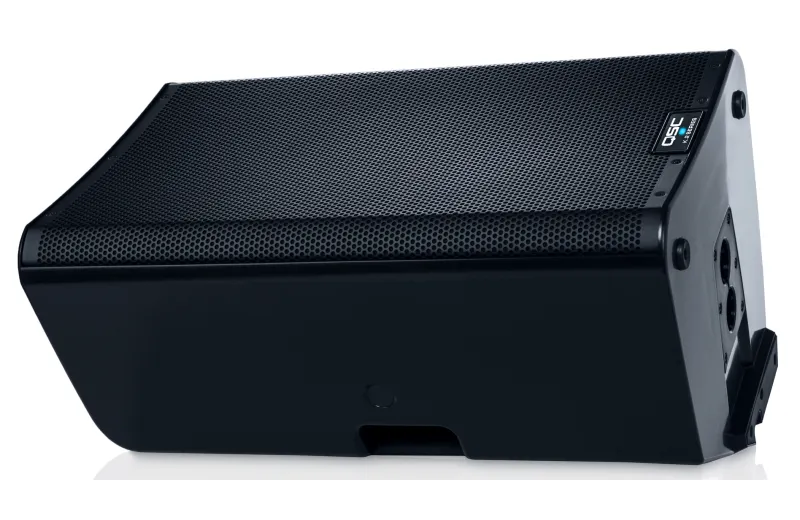

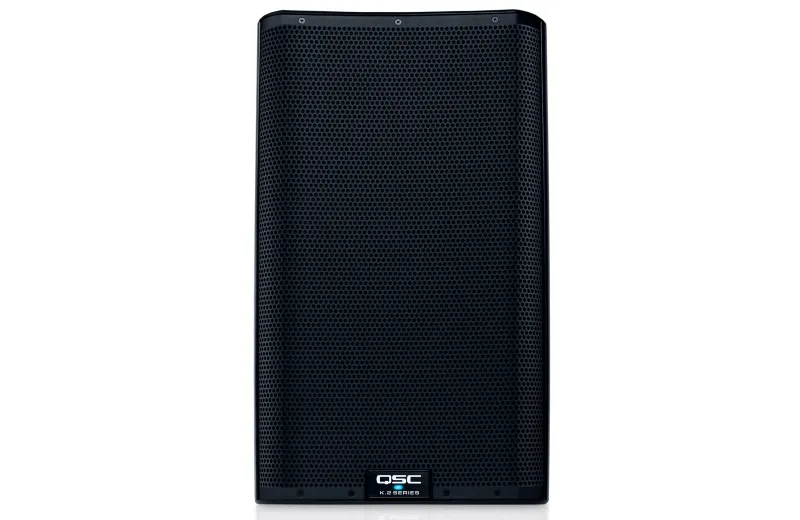

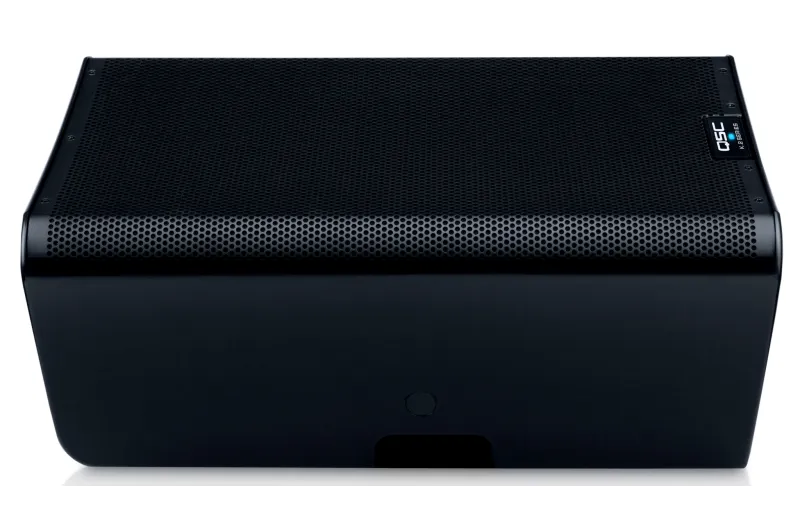

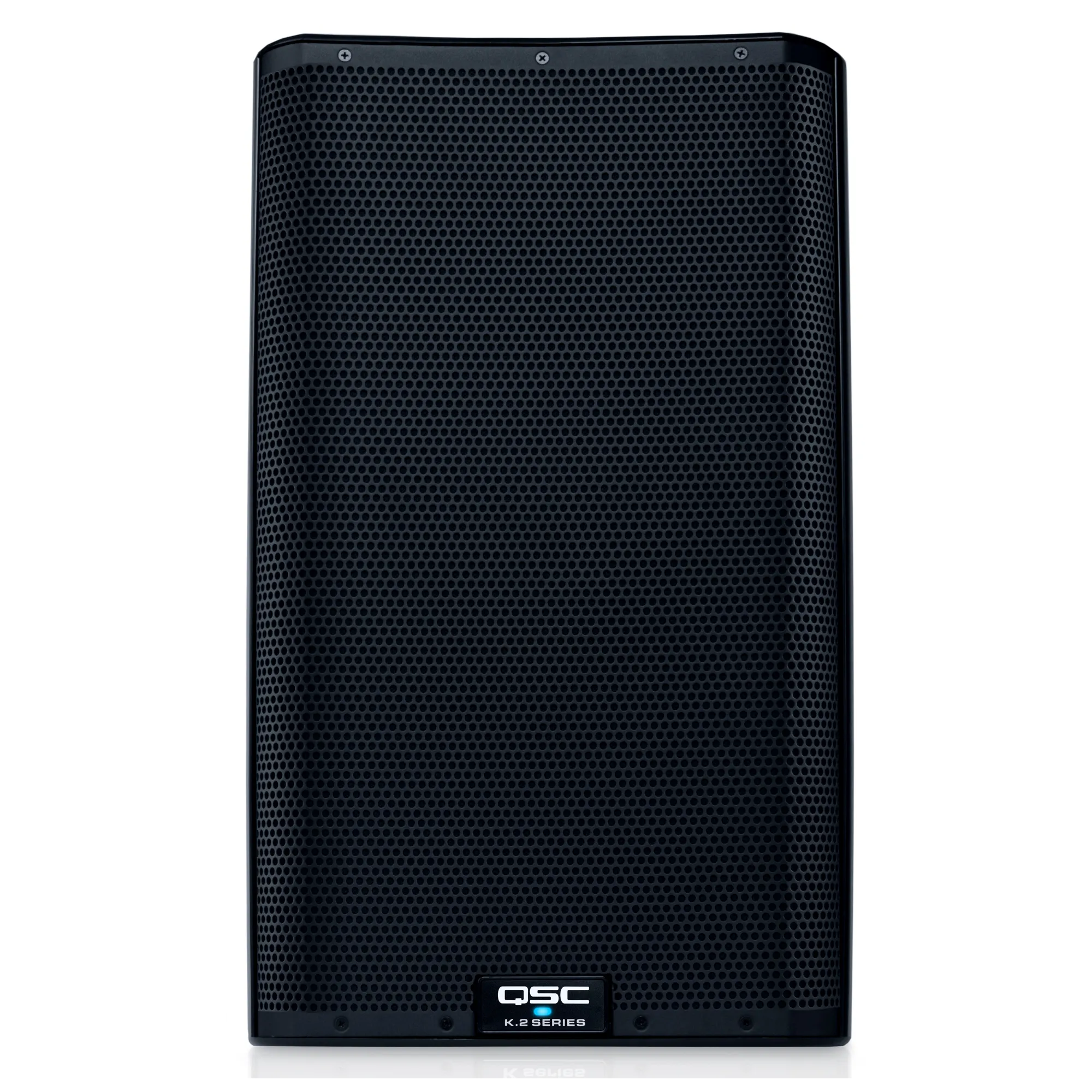

The professional active QSC K12.2 two-way speaker with 8 inches woofer and 1.4 inches titanium compression driver with 75° conical dispersion horn (-6dB)
Power and DSP: The 2000W power module meets the needs of Drivers to the maximum. It is designed to be cooled by a very low noise fan, allowing the speaker to be used where noise should be kept to a minimum. Carefully designed DSP takes care of the protection of the Drivers from over-driving but also to keep our sound always excellent, free from distortion.
Presets: The user can choose from a large list of EQ settings that include, among others, options for Live, DJ and Monitor applications. In addition, it is possible to save scenes so that we never lose the configuration of EQ, Delay and inputs.
Inputs: An XLR combo pair (XLR and TRS Jack 6.3mm in one slot) with independent Gain Control are the speaker inputs. The first input is equipped with MIC / LINE option while the second provides HI-Z / LINE option for musical instruments. Both inputs terminate in 2 XLR outputs, respectively, for connecting other devices / speakers. 3.5 mm TRS input jack is provided, with independent volume control, so that Smart Phones, PC and Mp3 Player can be connected.
Outputs: In addition to the 2 XLRs that duplicate the inputs, there is also an XLR output that gives us the mixed signal of the speaker.
Coverage: The DMT (Directivity Matched Transition) design ensures that the coverage angle of the woofer and the driver match the crossover frequency of both, thus giving us uniform coverage across the entire frequency range. Intrinsic Correction τεχνο technology is used to smooth its potential. The result is an accurate speaker that delivers maximum quality and volume in a wide variety of spaces.
Specifications:
- Frequency response (-6 dB): 59 Hz - 20 kHz
- Frequency range (-10 dB): 55 Hz - 20 kHz
- Coverage angle: 105 ° Axisymetric
- Maximum SPL: 128 dB @ 1 M, peak 122 dB @ 1 M, continuous
- Amplifier: Class D Peak: 1800 W (LF), 225 W (HF)
- Cooling method: Low noise fan

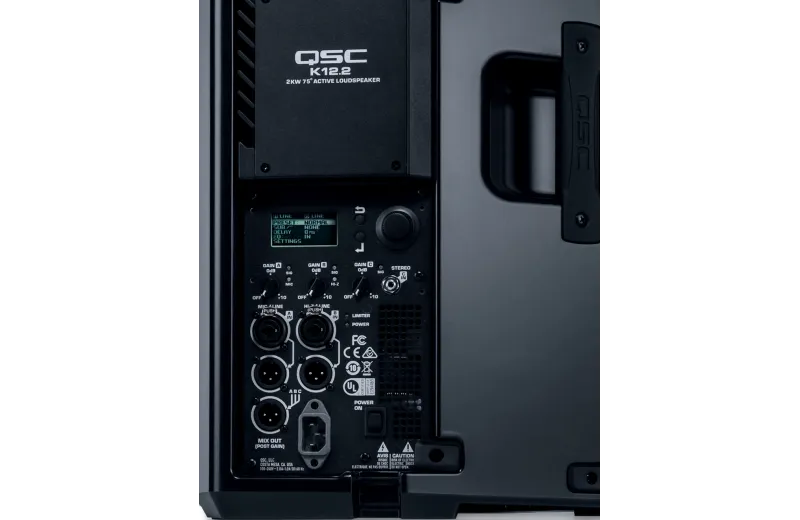

- Settings: Power, 3 x Level, Rotary encoder (push), 2 x selection buttons
- Indications: 1.75 inches x 1-inch LCD screen (45 mm x 25.4 mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input A Mic selected LED, Input B Hi-Z selected LED, Limiter active LED
- Connections: 2 x locking XLR / F? Combo (Mic / Line Input and Hi-Z / Line Input), 1 x 3.5 mm TRS (Stereo Input), 2 x XLR / M (Loop-thru Output), 1 x XLR / M (Mix Output), 1 x locking IEC power connector
- AC consumption at 1/8 of power: 240 VAC, 1.1 A
- AC Consumption in Standby Mode: 0.2A
- Specifications: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
