Χαρακτηριστικά:

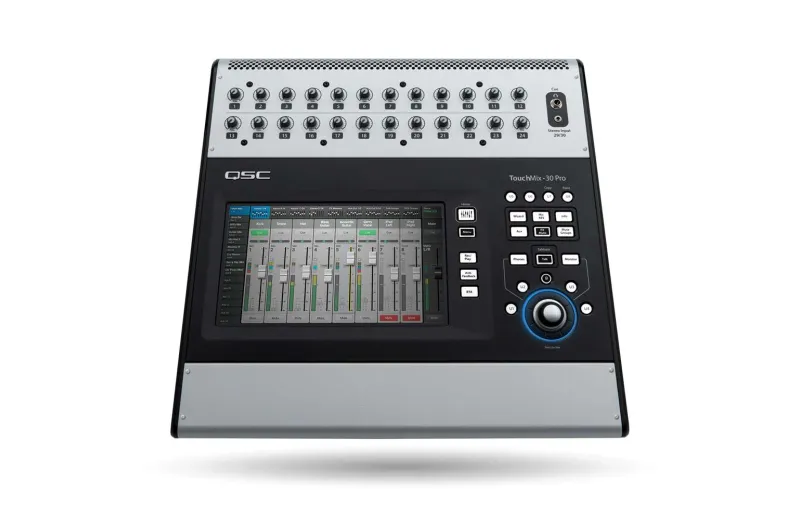

• Οθόνη: 10/" (254mm) diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing

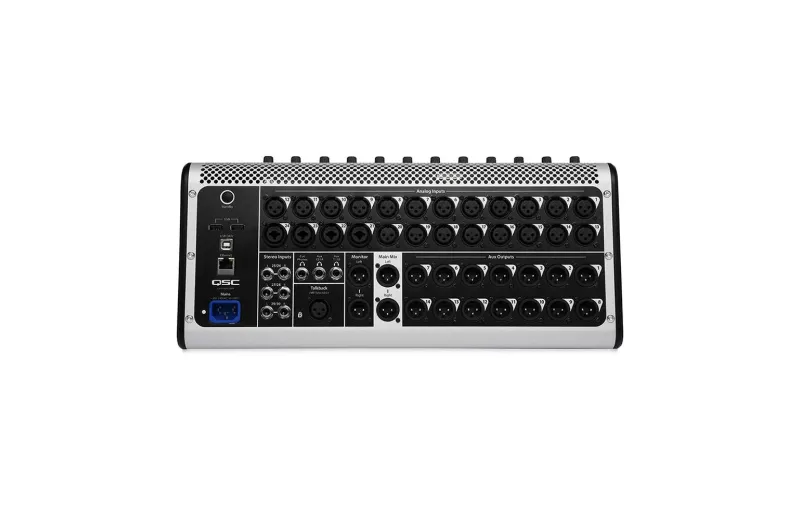

• Είσοδοι: 32 Είσοδοι, 24 Mic/Line, 20 XLR, 4 XLR combo, 6 Line, balanced, 1/4/" TRS + top panel 1/8/" (3.5 mm) stereo, - 2 Stereo USB / MP3 playback


• Έξοδοι: Main L/R: XLR line-level, 14 Aux: XLR, line-level; May be paired for stereo, Stereo In-Ear Monitor (2): TRS, (16 ohm min. impedance) from Auxes 11/12 and 13/14, Stereo Cue: TRS, (line or headphone, 16 ohm min. impedance), Monitor L/R: XLR, line-level


• Ψηφιακές Συνδέσεις: 2 USB A connector, 1 USB B connector, 1 RJ-45 (connection for Wi-Fi router)


• Επεξεργασία Mic:4-band Parametric EQ with Hi/Low Shelving Option, Variable 24 db/octave HPF and LPF, Gate, Compressor, Delay (100 msec max)

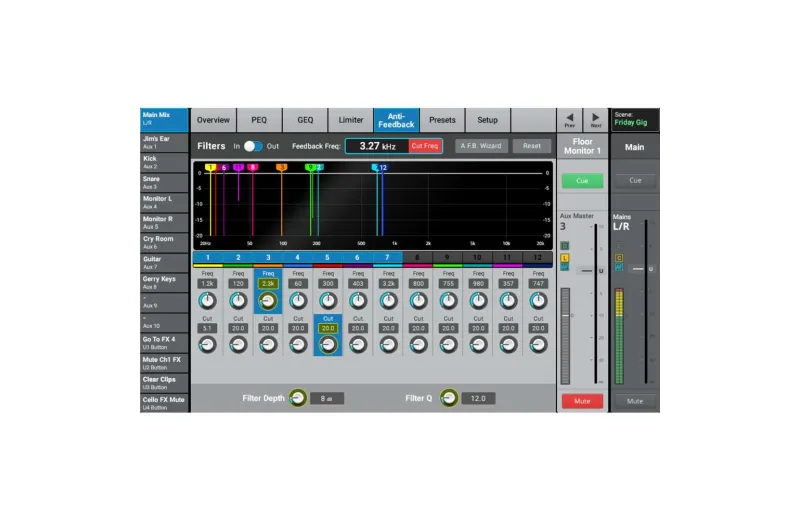

• Επεξεργασία Εξόδων: 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass FIlters, 12-band Variable Notch Filters; Limiter; Delay


• Επεξεργασία SubGroup: 6-band Parametric EQ with High- and Low-Pass Filters, Limiter

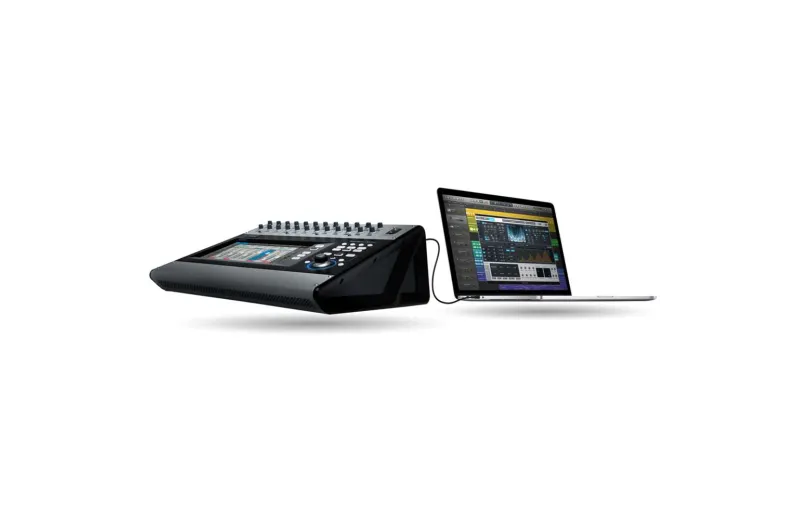

• Αναπαραγωγή/Ηχογράφηση: 32 x 32 tracks direct to hard drive or DAW (Core Audio interface to Mac OS); Stereo MP3 playback


• Γκρουπ: Eight DCA Groups (with mutes), Eight Mute Groups, Eight Sub Groups (may be linked in stereo pairs)


• Εφέ: 6 Simultaneous, Professional Effects Engines including Reverb, Echo, Delay, Chorus, Pitch Shift, 1 Pitch Correct (assignable to any mono input channel)

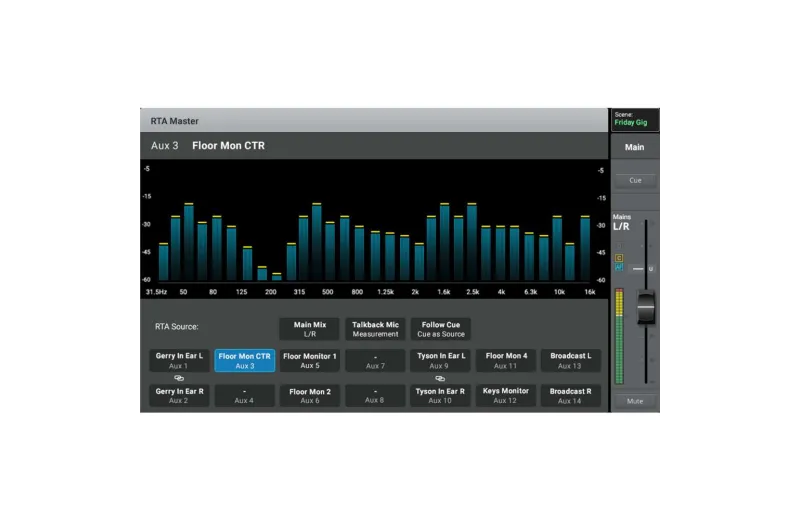

• Real Time Analyzer: 2 x 1/3 octave. 1 assigned to the selected channel, 1 with user selectable source

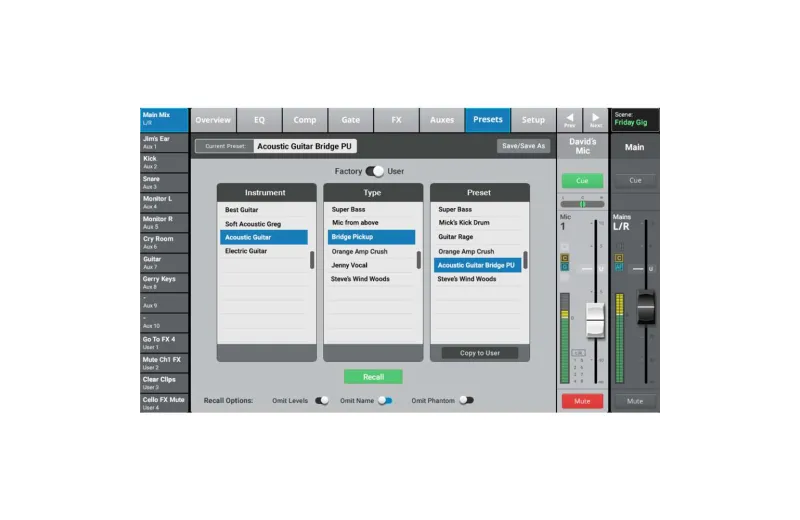

• Preset Memory: 99 User Scenes, 120 Factory Presets, 99 User Presets

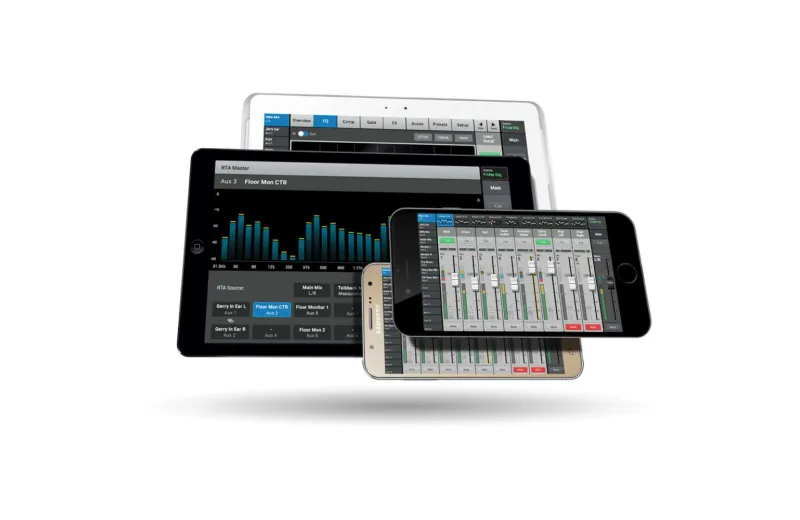

• Εξωτερικός Έλεγχος: TouchMix Control App for iPad® and Android tablets controls all mixer functions via Wi-Fi. App runs on iOS® and Android smartphones


• Wi-Fi: Απαιτείται εξωτερική σύνδεση με Wi-Fi router


• Διαστάσεις: 19 cm X 42.9 cm X 46 cm


• Βάρος: 7,9 kg


• Sampling Frequency: Selectable 44.1 kHz or 48 kHz


• THD: <0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output


• Frequency Response: 20 Hz-20 kHz +/-0.5 dB, any input to any output


• Dynamic Range: 105 dB


• Equivalent Input Noise: -126dB


• Residual Output Noise: -86dB


• Crosstalk: -80dB


• S/N Ratio: -94dB


• Regulatory Approvals: UL, CE, FCC (Class B), RoHS
