SHOW PA-40HM (B-STOCK)
871000-B

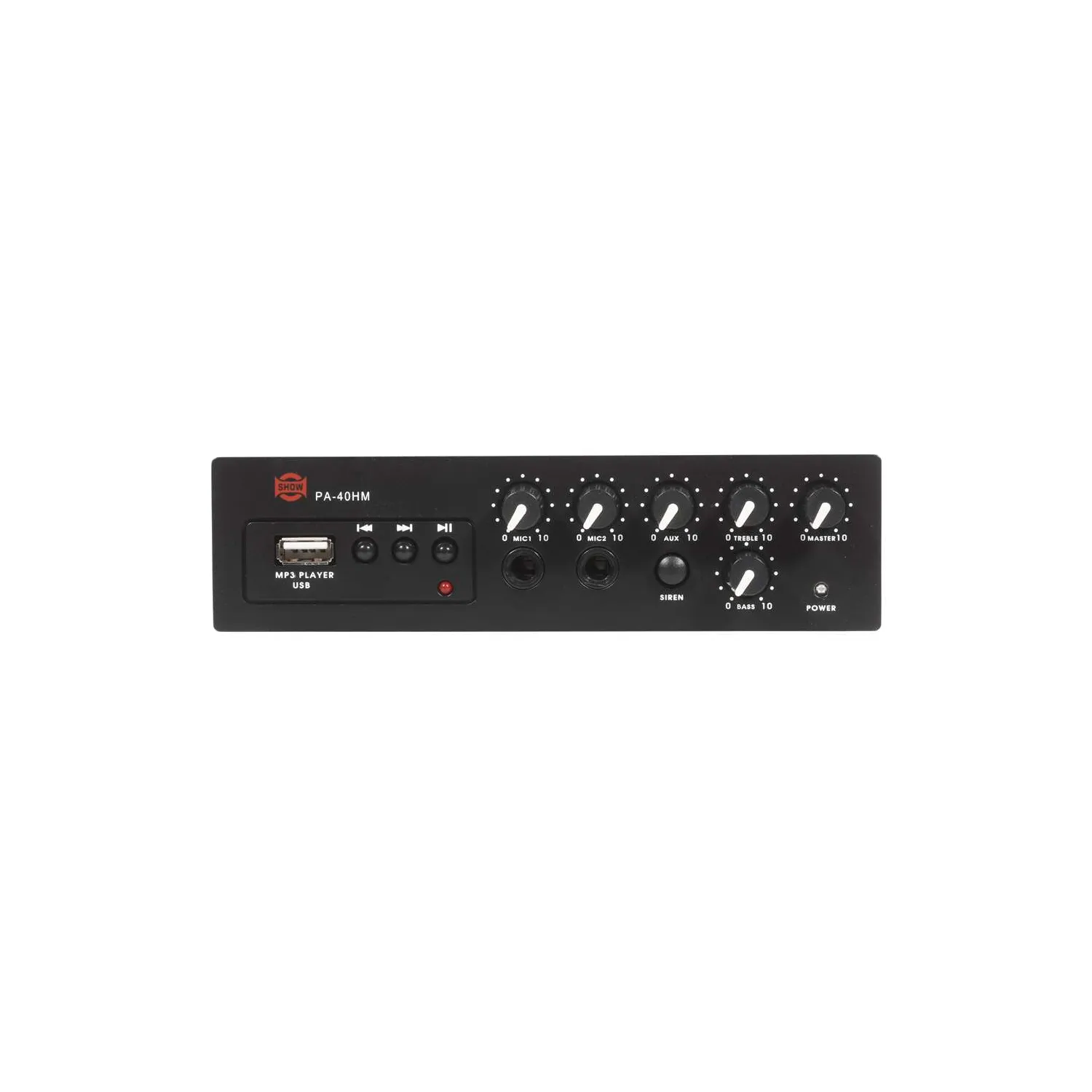

The PA-40HM is very compact amplifier specifically designed for fixed or mobile applications.
The PA-40HM is compact amplifier specifically designed for permanent installations. His small size and light weight make easy his integration in little space. The 12V DC operation perfectly fits for portable use or for installations where direct AC power supply is not available. This is an ideal solution for zoning, information points, ticketing counters and vehicles using rooftop speaker system.
Features an MP3 player with USB port, plus a siren triggered with a push button from the front panel. 2 Mic inputs are available with TRS 6.35mm jacks, plus 1 Aux stereo input on the rear panel with RCA connectors. All
volume controls are on the front panel and it includes a simple EQ setting. The output section uses euro block connectors and features 4 Ohm, 70/100 V.
Technical Specifications
- Power Supply: DC 12~15V, 2A
- Rated Output Power: 40W
- Max Rated Power Consumption: 60W
- Rated Output: 4 Ohm
- S/N Ratio: > 65dBu
- THD: 1%, -37dBu ± 2dB (MIC1~MIC2)
- Input Sensitivity (1 kHz): -11dBu ± 2dB (AUX)
- Noise or Hum: 25mV
- MP3: USB
- Output: 4 Ohm, 70V/100V
- Dimension (W x D x H): 161 x 101 x 45 mm
- Weight: 1.02 kg
B-Stock
- MPN
- PA-40HM
